bx150-EVIDENZA

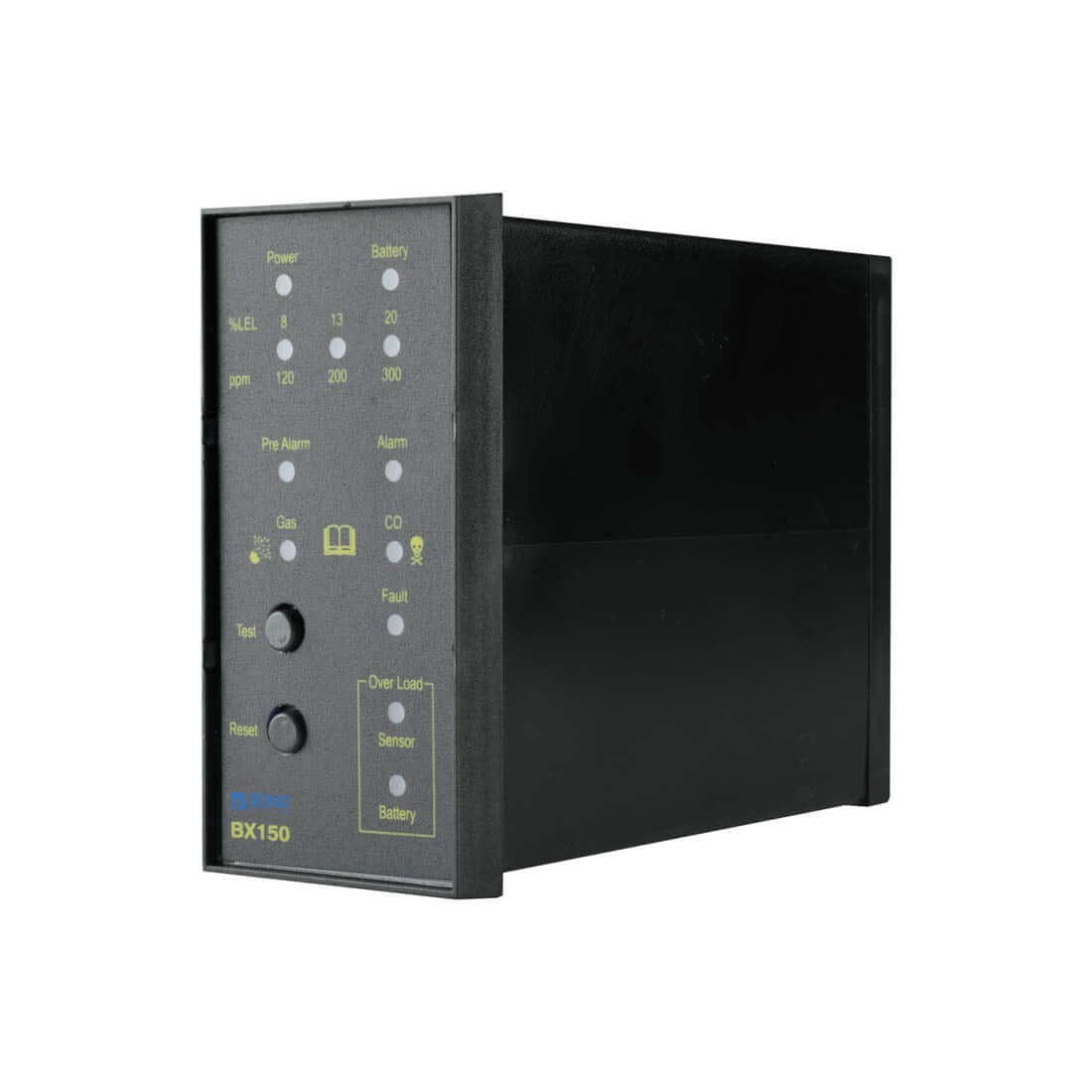

BX150

1 Channel modular gas detection controller

Through the connection of 1 remote probe, the BX150 control unit has been designed and built to detect the presence of toxic and/ or explosive gas flexibly. A microprocessor is used to create a complete surveillance and control system with maximum flexibility. Thanks to this and its other features, the BX150 is suitable for civil and industrial applications.

The BX150 control unit has two hazard levels:

1st LEVEL, 1st Pre-Alarm. is set at 13 % of L.E.L. for all probes.

2nd LEVEL, Main Alarm. is set at 20% of L.E.L.

Primary power supply: 230/240 VAC 50/60 Hz
Secondary power supply: 12 V. dc ± 10%
Absorption: 7W in alarm
Pre alarm output relay: ON – OFF
Alarm output relay: In exchange
Failure relay: ON – OFF
Conventional Gas Probe: Max. 1
Catalytic, Electrochemical, Semiconductor, Pellistore
Explosive alarm threshold: 8 -13 – 20% LIE
Toxic alarm threshold: 120 – 200 – 300 ppm
Input signal: 4 ÷ 20 mA on 220 Ohm
Accuracy: 1% FS
Positive Security: Selectable
Working temperature: -10 ° C ÷ + 60 ° C
Degree of protection: I P 4 2
Installation: Panel mount
Dimensions: 112 x 96 x 44 mm
Package Dimensions: 120 x 168 x 60 mm
Weight: 450 grams approx.
