GS100M-evidenza

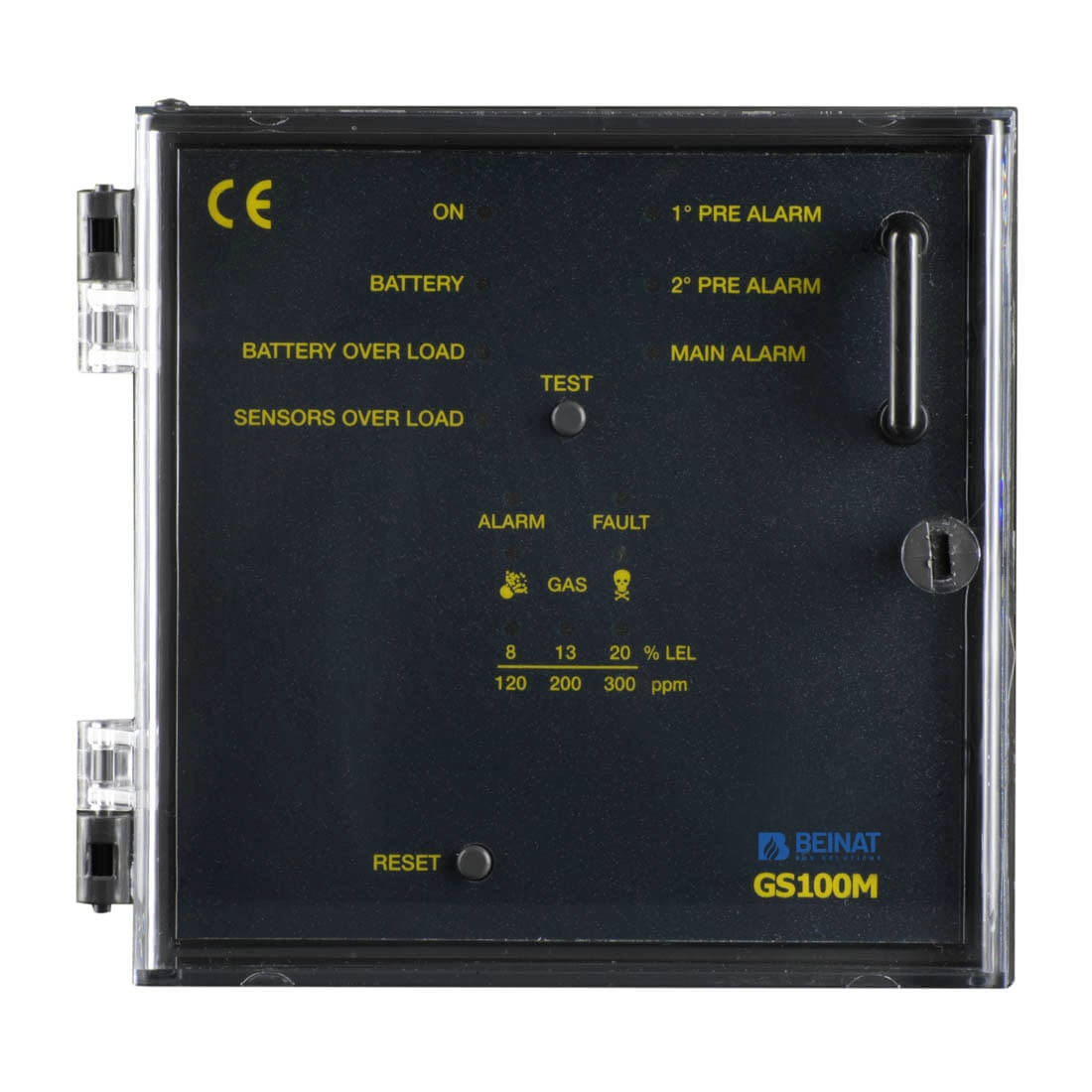

GS100M

1 Channel explosive and toxic gas detection controller for industrial use

Through the connection of 1 remote sensor, the GS100M control unit has been designed and built according to European regulations to detect the presence of toxic and/or explosive gas. A microprocessor is used to create a complete surveillance and control system with maximum flexibility. Thanks to this and its other features, it is suitable for civil and industrial use and small underground car parks.

The GS100M control unit has three hazard levels:

1st LEVEL, 1st Alarm. It is set to 8 % of L.E.L. (120ppm) for all probes.

2nd LEVEL, 2nd Alarm. It is set at 13% of L.E.L. (200ppm) for all probes.

3rd LEVEL, Main Alarm. It is set at 20 % of L.E.L. (300ppm) for all probes

Primary power supply: 230/240 VAC 50/60 Hz
Secondary power supply: 12 V. DC ± 10%
Absorption: 7W in alarm
Pre alarm output relay: ON-OFF
Alarm output relay: In exchange
Failure relay: ON-OFF
Gas probe: Max. 1
Catalytic, Electrochemical, Semiconductor, Pellistore
Explosive alarm threshold: 8 – 13 – 20% LIE
Toxic alarm threshold: 120-200 – 300 ppm
Input signal: 4 ÷ 20 mA
Accuracy: 1% FS
Positive Security: Selectable
Working temperature: -10 ° C ÷ + 60 ° C
Protection degree: IP44
Installation: Wall or square
Dimensions: 144x144x108
Package Dimensions: 170x170x120
Weight: 850 grams approx.
