SGM595-evidenza

SGM595

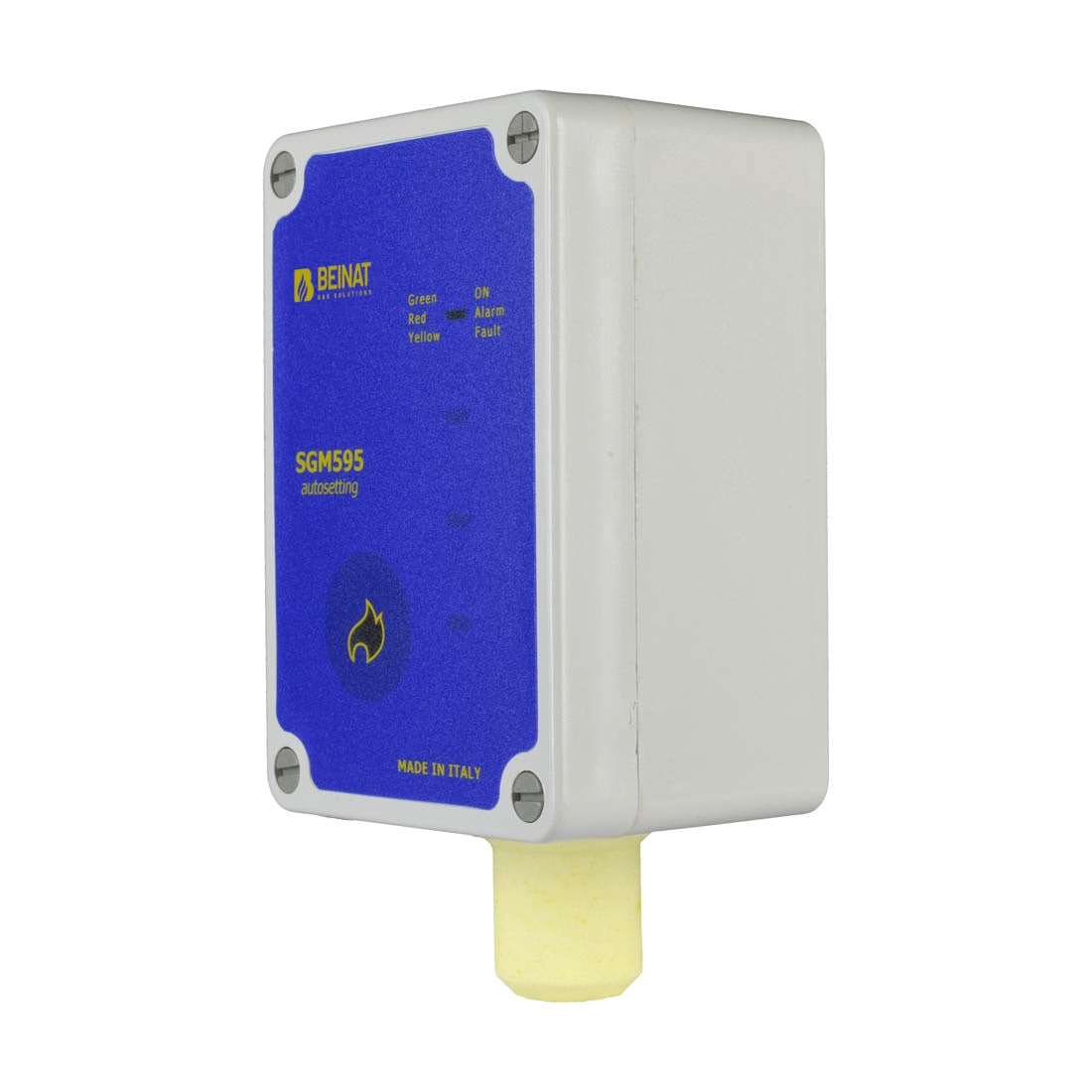

Conventional explosive auto-calibrating gas sensor for tertiary use. IP55

The sensor is a Catalytic gas detection detects the presence of explosive gas such as Methane, LPG or Hydrogen. The sensor is managed by a microprocessor, which not only supplies an alarm signal to the control unit connected to it, but also allows execution of a self-diagnosis and therefore an automatic calibration, in order to always have the maximum detection accuracy. The self-calibration means the probe adapts in harsh and variable temperature environments, avoiding false alarms due to anomalous events.

Test: to perform a precise and self-certified test, use the TS1008 instrument, which also serves to carry out the annual check

Primary power supply: 12 ÷ 24 VDC ± 10%
Absorption: 1W max @ 13.8V
Signals: green LED regular function, yellow Fault light, red alarm light
Sensor: Catalytic
Sensor replacement: Autonomously
Operating range selected: 0 ÷ 20% or 0 ÷ 100%
Output signal: 4 ÷ 20 mA on 220 Ohm
Data transmission: Not present
Test socket for: TS1008
Compatible ECUs: The whole Beinat series
Working temperature: 50 ° C
Protection degree: IP55
Container and Dimensions: ABS 78x114x58
Package Dimensions: 197x122x67
Weight: approx. 250 grams
