Thermoregulation controller for motorized valve or burner

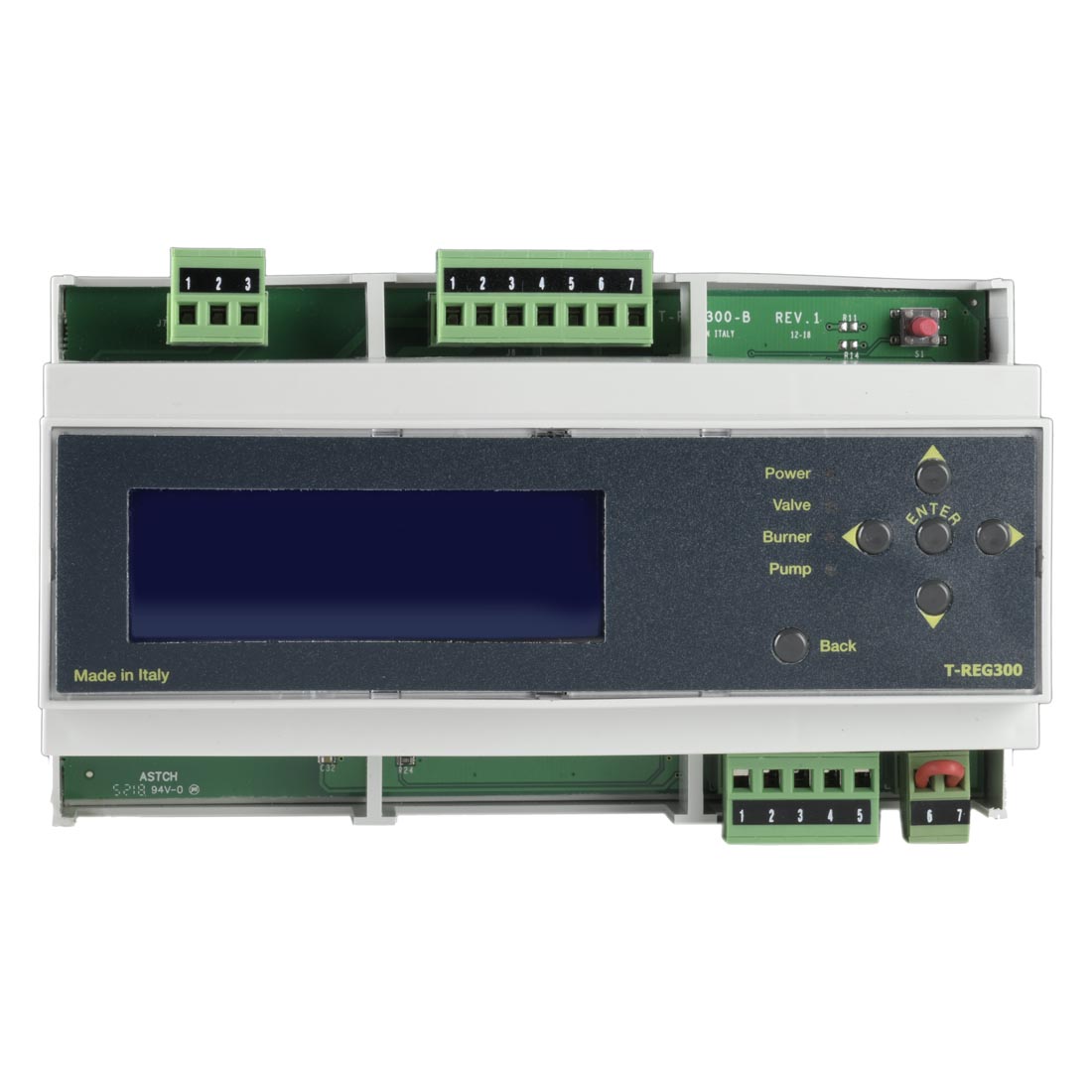

The thermoregulation control unit T-REG300 is an electronic device which, based on many years of BEINAT’s experience in the field of thermoregulation, allows to keep constant control of the heating temperature in the environments. This unit acquires the temperature data derived from internal and external probes and adjusts the heating fluid to the desired climatic needs, allowing a high degree of comfort.

The settings of this control unit is very easy, just follow the instructions required by reading them directly from the display.

The T-REG300 a versatile device that allows the user to choose his mode of operation connecting it to the mixing valve (proportional integral operation) the burner with (ON – OFF).

Power supply: 230/240 VAC ± 10% 50Hz
Absorption: 3.6W @ 240VAC
Contact rating on the relay: 6A 250V. resistive
Voltage free contacts
Type of sensors: NTC 47 kOhm
Sensors operating temperature: -20 ° C .. 120 ° C
Temperature reading range: -20.0 ° C .. 120 ° C
Accuracy: ± 1 ° C
Resolution: 0.1 ° C
Dispaly: backlit numeric alpha
Selectable reading language: Ita- UK- ES
Operating temperature: -10 ° C ÷ + 60 ° C
Humidity limits: 90% RH non condensing
Maximum distance between probes and control unit: 100 m
Cross-section of the connecting cables to the probes: 1 mm2
Omega DIN EN 50092 bar dimensions 9 modules: 158x90x58 mm
Electromagnetic Compatibility C: Reference standard
Degree of protection: in air IP20
