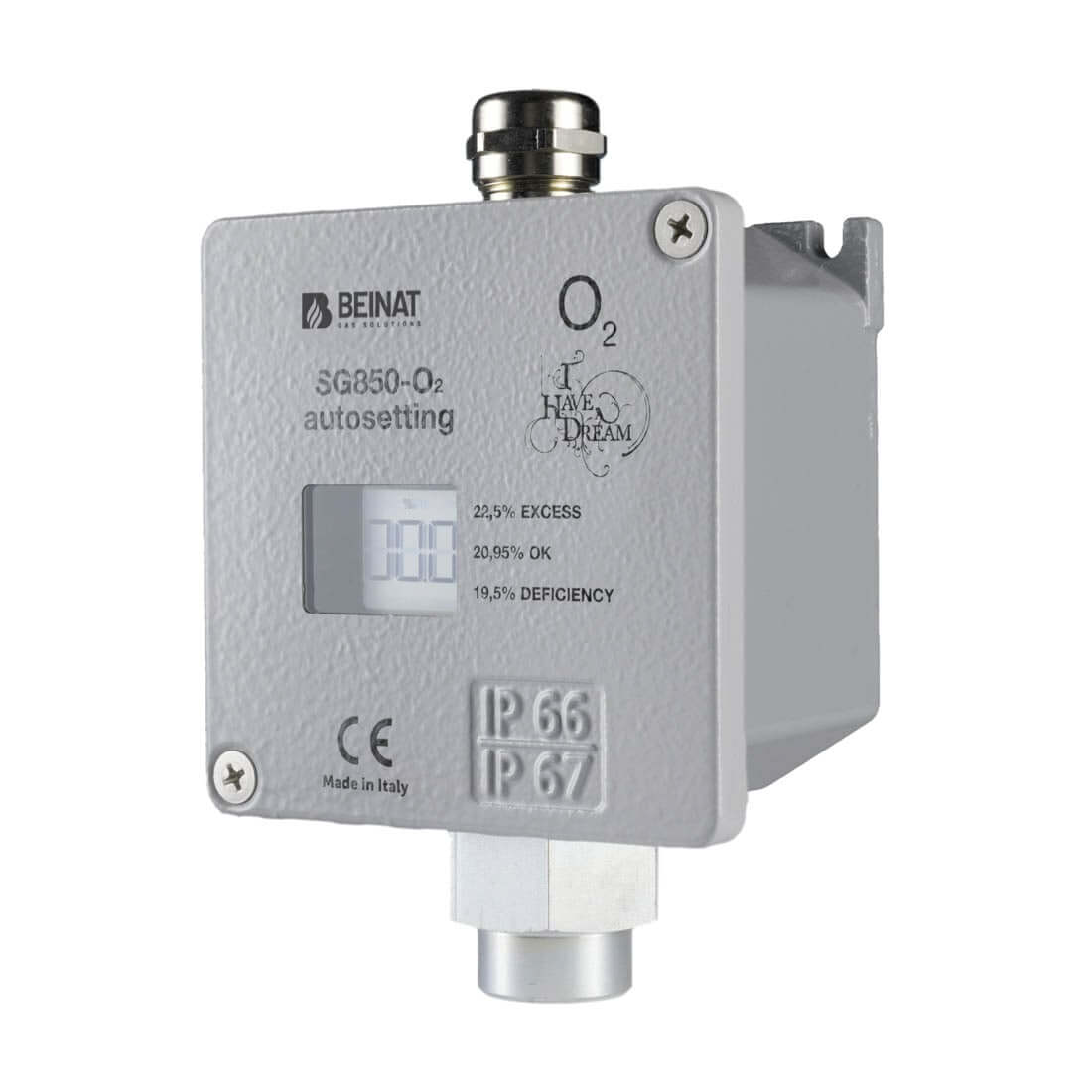

SG850-O²

Conventional stand-alone oxygen sensor for tertiary use. IP66

The SG850-O² is a IP66 gas detection unit that in stand-alone mode, detects the presence of  Oxygen

This sensor, through an optical fluorescence sensor, detects the presence of Oxygen (O2)

With this sensor it is possible to:

1) select the alarm intervention for:  >oxygen excess or <deficiency

2) select the positive safety of the relay

The sensor is managed by a microprocessor which also manages the execution of a self-diagnosis, and related automatic calibration, in order to always have the maximum detection accuracy. With this self-calibration the probe adapts its detection in harsh and variable temperature environments, avoiding false alarms due to anomalous events.

Test: to perform a precise and self-certified test, use the TS1008 instrument, which also serves to carry out the annual check.

Primary power supply: 12 ÷ 24 VDC ± 10%
Absorption: 1.5 W max @ 13.8V
Alarm relay: changeover 10 A SELV
LED diode signals: Green normal operation; Yellow fault; Red alarm see% of setting; TWA eight hour cyan alarm; Magenta STEL alarm 15 minutes
Integrated sensor: Fluorescence optic
Gas detection: OXYGEN
Output signal: 4 ÷ 20 mA on 220 Ohm
Shortage alarm: 18.5%
Excess alarm: 23.5%
Test socket for: TS1008
Working temperature: 50 ° C
Container and Protection: Aluminum – IP66
Dimensions: 100x100x60 mm
Weight: 550 grams
